Paper Clip Descent Timer

A DIY friction-based timer for water rocket parachute deployment — made from a jumbo paper clip and a rubber band.

How It Works: The Rappel Rack Principle

A rappel rack (or descender) controls the speed of a rope by weaving it through a series of friction bars. This timer uses the exact same principle at miniature scale: a rubber band is threaded through a zigzag "ladder" bent from a paper clip. Tension on the rubber band causes the tail to slowly slip through the bars. When the tail finally pulls free, all tension is released — and whatever it was holding (the nose cone / parachute compartment) pops off.

The distance between rungs, the number of rungs, the rubber band type, tail length, and tension all affect the delay. This is the variable your students will experiment with.

The Real Thing: Rack Descenders

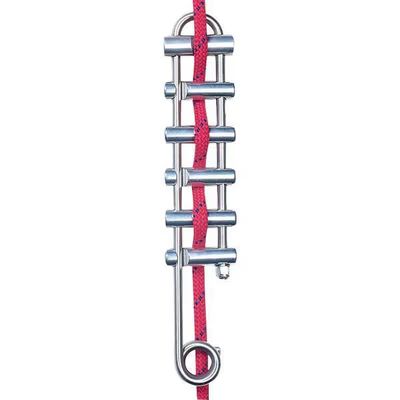

A steel rappel rack descender with climbing rope woven through the bars in an S-pattern

This is a rack descender (also called a rappel rack) — used by cavers, rope rescue teams, and industrial rope access workers to control descent on a rope. The rope weaves through a series of metal bars in an alternating S-pattern. More bars engaged = more friction = slower descent. Fewer bars = faster.

Our paper clip timer is the same device in miniature. The rubber band is the "rope" and the zigzag bends are the "bars." The physics is identical — just scaled down.

The Physics: Why This Isn't the Capstan Equation

You might think this is the capstan equation (Euler's friction formula), which describes a rope wrapping around a cylinder. In the capstan equation, the holding force increases exponentially with the number of wraps:

F_hold = F_pull × e^μθ

Capstan equation — exponential with wrap angle θ

But our descender is not the capstan equation. The rope doesn't wrap around the bars — it weaves between them in an S-curve, bending back and forth. Each bar forces the rope (or rubber band) through two sharp changes of direction. The friction at each bar depends on the contact pressure, which itself depends on the tension and the deflection angle, which depends on the bar spacing.

The result is that friction force scales roughly with the cube of the number of bars:

F_friction ∝ n³

Approximate — friction grows with the cube of the number of bars (n)

This cubic relationship is why the sweet spot is so narrow:

4 rungs: 4³ = 64 units of friction — a usable delay
5 rungs: 5³ = 125 units — roughly double the friction of 4
6 rungs: 6³ = 216 units — getting slow
7 rungs: 7³ = 343 units — the rubber band can barely move. Locked.

Going from 4 bars to 7 doesn't increase friction by 75% — it increases it by over 400%. That's why 2-3 rungs gives almost no delay, 4-6 is the sweet spot, and 7+ locks up completely. Small changes in rung count have enormous effects on the timer.

Other factors compound this: bar spacing (closer = sharper bends = more friction per bar), rubber band stiffness (stiffer = more contact force at each bend), and surface texture (paper clip wire is smooth steel, which helps). Students who understand this cubic relationship can predict and explain their tuning results instead of just guessing.

MATERIALS

What You Need

Jumbo Paper Clips Smooth finish, ~2" size. The bigger wire is easier to bend into shape. Bring extras.

Needle-Nose Pliers For bending the zigzag rungs. A second pair of flat-jaw pliers helps too.

Rubber Bands Multiple sizes and thicknesses. Thin ones slip faster, thick ones slower. Experiment!

Wooden Stick / Paint Stirrer For building a test rig before going on the rocket. Critical for tuning.

Clear Tape Packing tape to mount the descender to the test rig (and later to the rocket body).

Clothespin "Remove Before Flight" safety flag. Prevents the timer from starting until you're ready.

STEP 1

Straighten the Paper Clip

Unfold a jumbo paper clip into a straight(ish) wire. Don't worry about getting it perfectly straight — you're about to bend it all up again. The quarter in the photos is for scale.

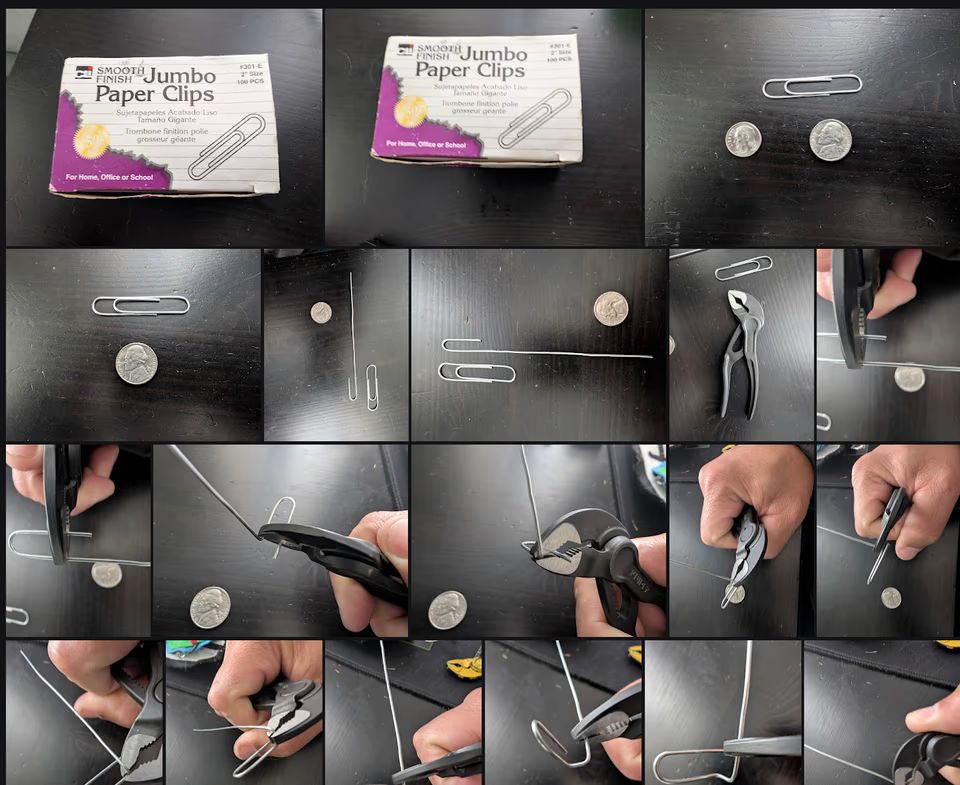

Jumbo paper clips box, quarter for scale, unfolding and straightening the paper clip wire with pliers

Jumbo paper clips, quarter for scale. Unfold completely, then start shaping with pliers.

STEP 2

Bend the Zigzag Ladder

Using needle-nose pliers, bend the wire into a tight zigzag pattern — like a very tiny ladder or the letter "W" repeated. Each bend creates a "rung" that the rubber band will have to slip around.

Aim for 4-6 rungs — 2-3 gives almost no delay, 7+ locks up and the band can't pull through
Keep the spacing tight but consistent — ~3-5mm between rungs
The rungs should be roughly parallel — this creates the friction path
Leave a straight "stem" at one end for mounting

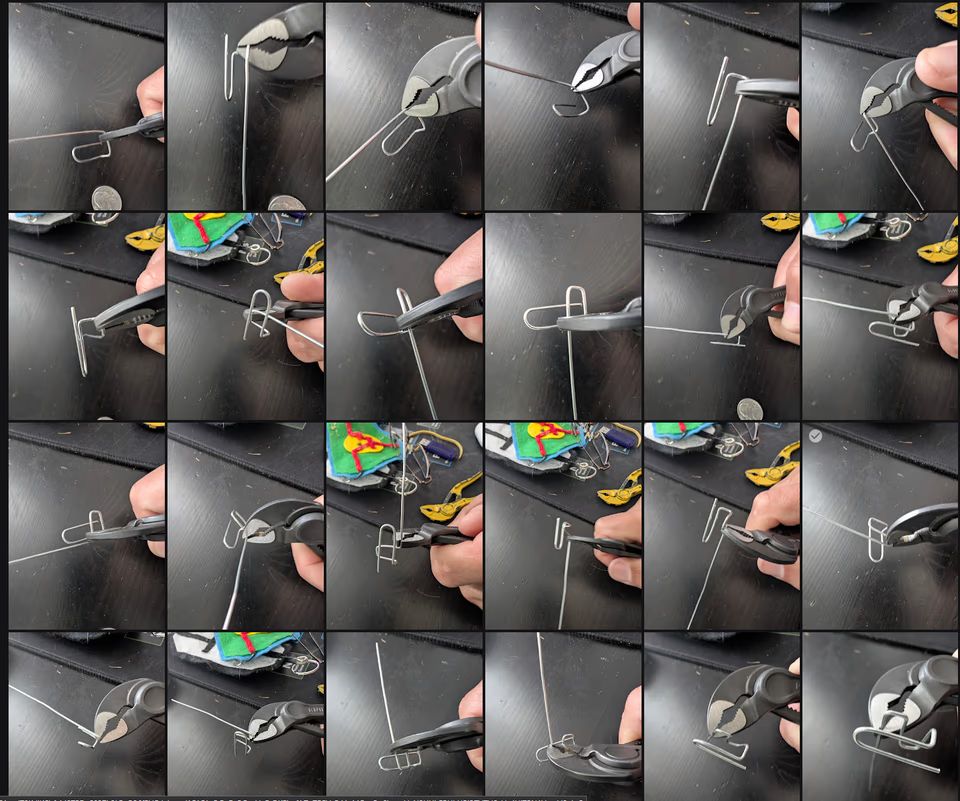

Bending the paper clip wire into a zigzag ladder pattern using needle-nose pliers

Grip, bend, advance, repeat. Each bend creates one rung of the descender.

STEP 3

Refine the Descender Shape

Tighten up the zigzag so the rungs are close together and uniform. The finished shape should look like a tiny washboard or comb. The rubber band needs to weave through the rungs in an alternating over-under pattern — just like rope through a rappel rack.

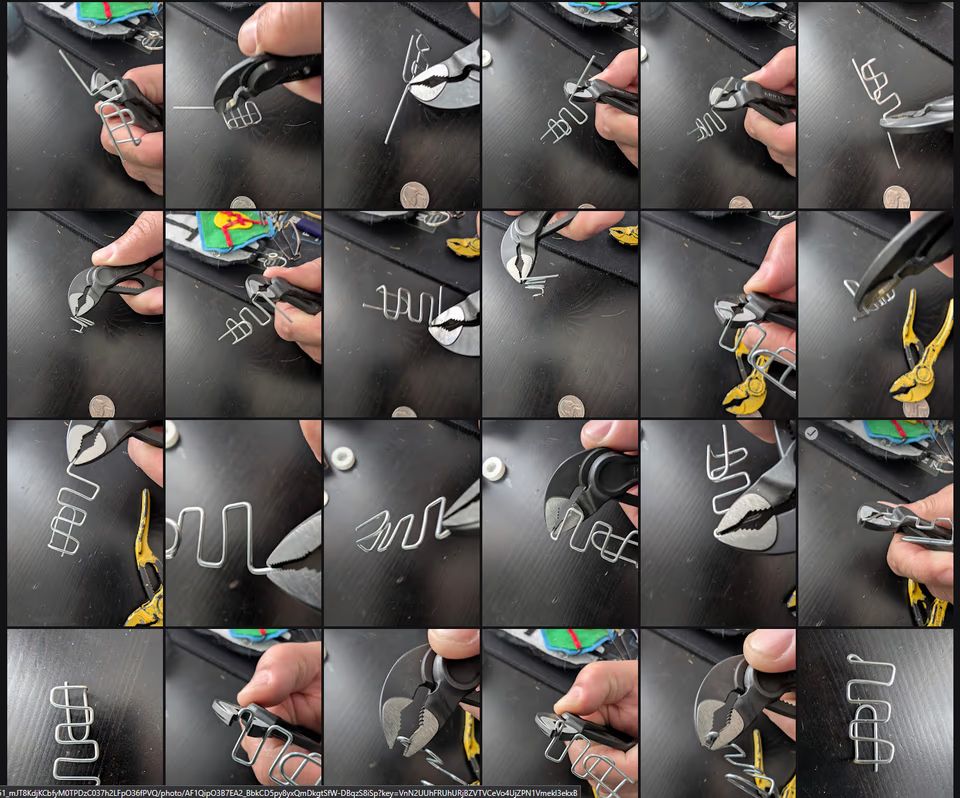

Refining the paper clip into a tight zigzag descender shape, multiple examples shown

The finished descender: a tight zigzag with consistent spacing. Several examples shown — each one gets better with practice.

Pro tip: Make several. They're quick once you get the feel, and you'll want spares. Each one will behave slightly differently, which is actually useful for testing.

STEP 4

Build a Test Rig

Do NOT skip this step. Tape the descender to a paint stirrer or wooden stick with clear packing tape. This is your test bench — you'll use it to tune the timer before ever putting it on a rocket.

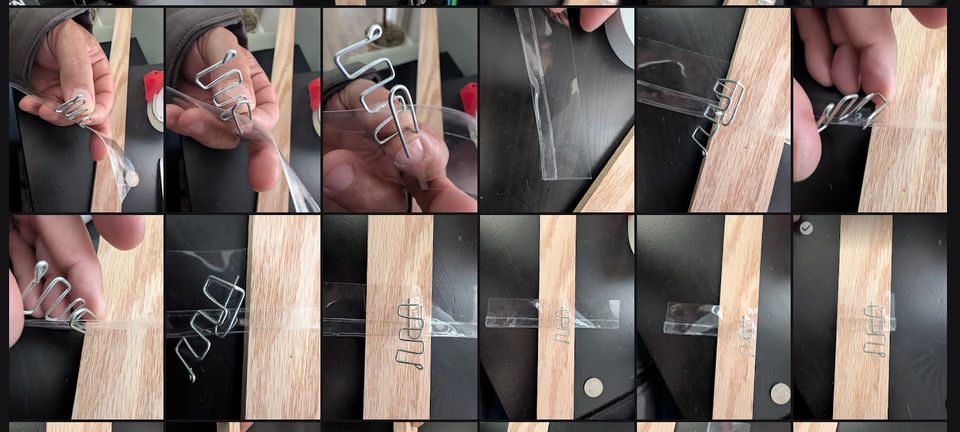

Completed descenders mounted to a wooden paint stirrer test rig with clear tape

Descender taped to a paint stirrer. Simple, effective, and you can hold it to watch the rubber band work.

Test First. Then Test Again.

Repeatability and consistency are critical. A timer that works once is useless. A timer that works the same way 10 times in a row is a parachute deployment system. The test rig is where you earn that consistency.

STEP 5

Thread the Rubber Band

Weave one end of a rubber band through the descender rungs in an alternating over-under pattern. Leave a "tail" hanging out one side — this is the timing element. The tail should hang freely on the tension side.

The anchor end connects to whatever is being held (nose cone attachment point)
The tail end is what slips through the descender over time
More weaves through the rungs = more friction = longer delay

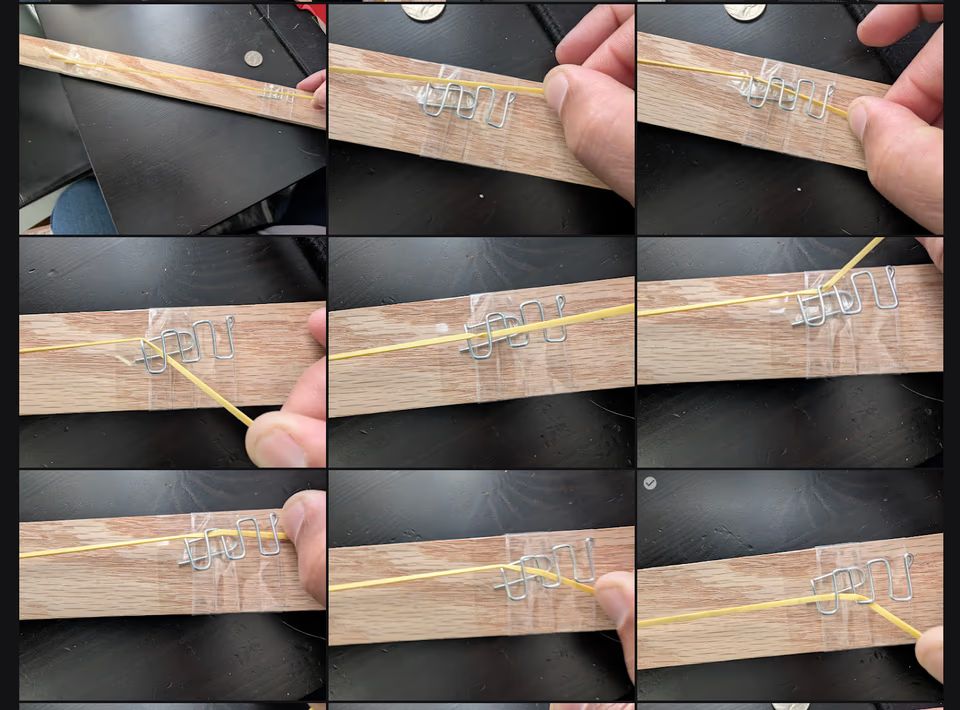

Rubber band threaded through the paper clip descender on the wooden test rig, showing the weaving pattern

Rubber band woven through the descender rungs. The tail hangs out the right side — as tension pulls it, the tail slowly slips through.

STEP 6

Watch the Timer in Action

Pull the rubber band taut (simulating the tension between the nose cone and rocket body). The tail will start to creep through the descender. When it finally slips free of the last rung — snap — all tension is released instantly.

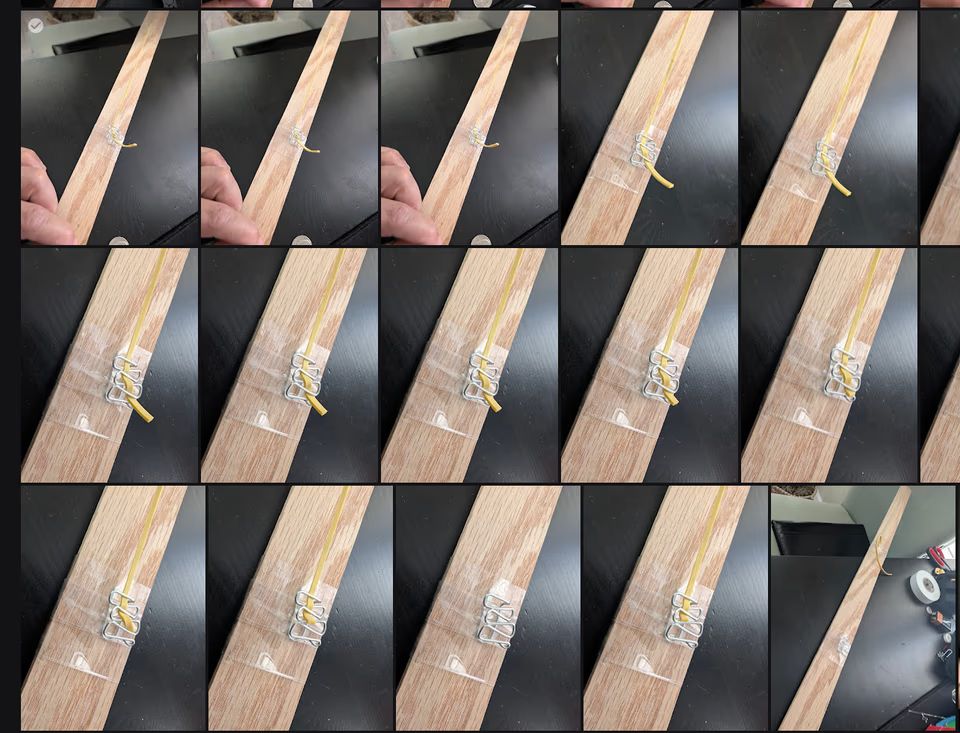

Time-lapse sequence showing the rubber band tail slowly slipping through the descender until release

The slip sequence: tail starts long (left), creeps through the rungs, and finally pulls free (right). When it clears the last rung — instant release.

STEP 7

Tune the Delay

This is where the engineering happens. Students experiment with these variables to dial in the delay:

Variable	Shorter Delay	Longer Delay
Number of rungs	4 rungs (sweet spot start)	5-6 rungs (max usable — 7+ locks up)
Rung spacing	Wider apart	Closer together
Tail length	Shorter tail	Longer tail through more rungs
Rubber band thickness	Thin bands slip faster	Thick bands grip more
Rubber band tension	More tension = faster pull	Less tension = slower creep
Rubber band type	Smooth/new bands	Tacky/textured bands

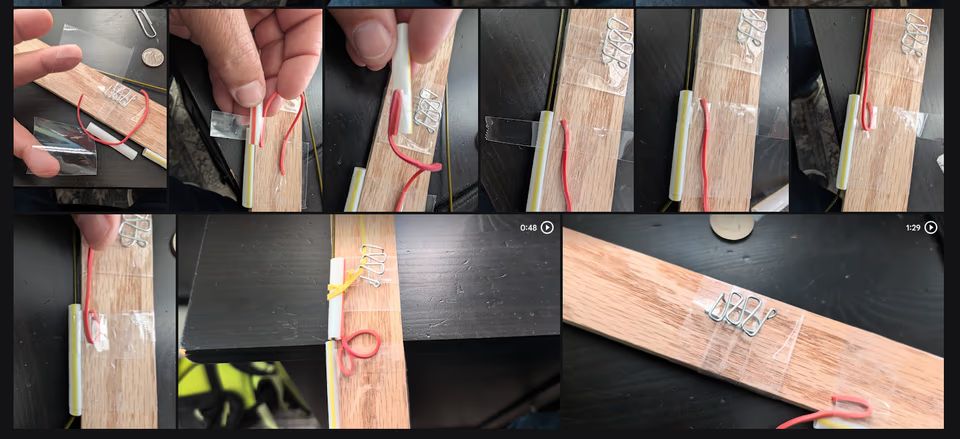

Different rubber band types and colors tested on the descender for different timing characteristics

Experiment with different rubber band types, thicknesses, and lengths. Each one behaves differently.

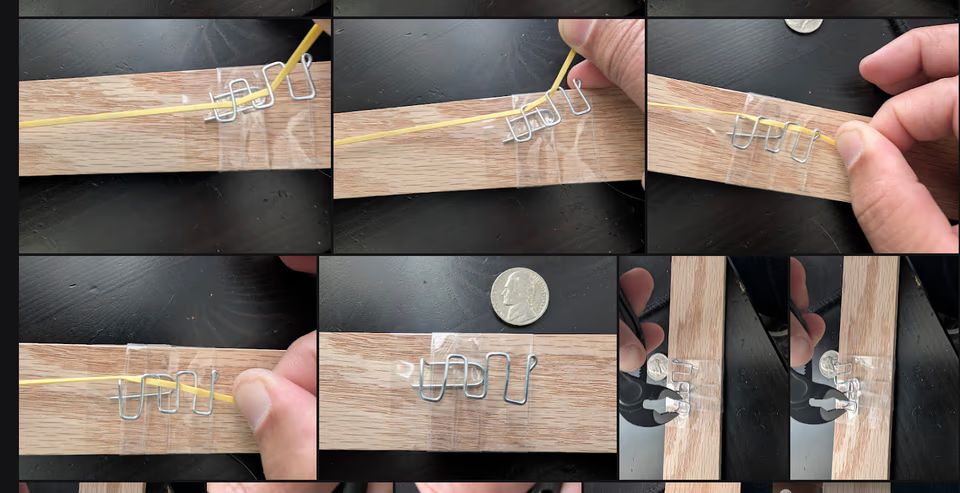

Multiple test rig configurations with different rubber band setups

Multiple configurations on the test rig. Test, record, repeat.

STEP 8

Integrate with Your Rocket

Once you've got a consistent, repeatable delay on the test rig, it's time to install on the rocket. The descender mounts to the rocket body (taped flat). A second rubber band is permanently attached between the nose cone and rocket body — this is the ejection band that pulls the nose cone off once the timer releases.

How it connects:

Ejection rubber band: Permanently attached, stretched between the nose cone and the rocket body. Always under tension. This is what actually separates the nose cone.
Timer descender: Holds the nose cone against the ejection band's tension. The timer rubber band's tail slips through the descender, and when it clears — the ejection band snaps the nose cone off, deploying the parachute.

Starting the timer (choose one):

Option A: Tuck & Release

Tuck the rubber band tail up into the open top of the 2-liter bottle body. When the rocket is released from the launcher, the tail drops free and starts slipping through the descender. Simple and reliable.

Option B: Straw Pinch

Thread a straw through the launch lug. Wrap the rubber band tail around the straw. The straw pinches the tail, preventing it from moving. When the rocket clears the launch rod, the straw is freed, the tail unwraps, and the timer starts. More complex but more reliable start trigger.

Option C: Clothespin Safety

Use a clothespin clipped over the rubber band tail as a "Remove Before Flight" flag. The clothespin prevents the tail from moving until it's deliberately removed. Perfect for events where students aren't allowed to load their own rockets — the instructor loads the timer, clips the clothespin, hands the rocket to the student, and removes the clothespin just before launch.

Comb variation: An "unbreakable comb" with a few teeth removed may work as a pre-made descender — the remaining teeth act as rungs. Worth testing, but the paper clip gives you more control over spacing.

Safety & Event Tips

Always test on the ground first. A timer that fires too early (or never) is a failed launch, not a learning experience.
The clothespin "Remove Before Flight" flag is not optional at events. It prevents accidental deployment while handling.
Paper clip wire ends are sharp. Tape or bend over any exposed tips, especially near the nose cone where fingers go.
Rubber bands degrade. Replace them between events. A dried-out band will snap instead of slip.
Record your results. Number of rungs, spacing, rubber band type, tail length, and measured delay. Repeatability comes from data, not memory.

The Science: Why This Is Great Engineering Education

This timer is a real engineering challenge with real variables. Students must understand friction (the descender), elasticity (the rubber band), potential energy (the stored tension), and experimental design (controlling variables to get repeatable results). There's no app, no electronics, no batteries. Just physics.

It also mirrors professional recovery systems — real high-power rockets use friction-based and mechanical timers. And rappelling/climbing descenders use the exact same S-curve friction principle at human scale.
